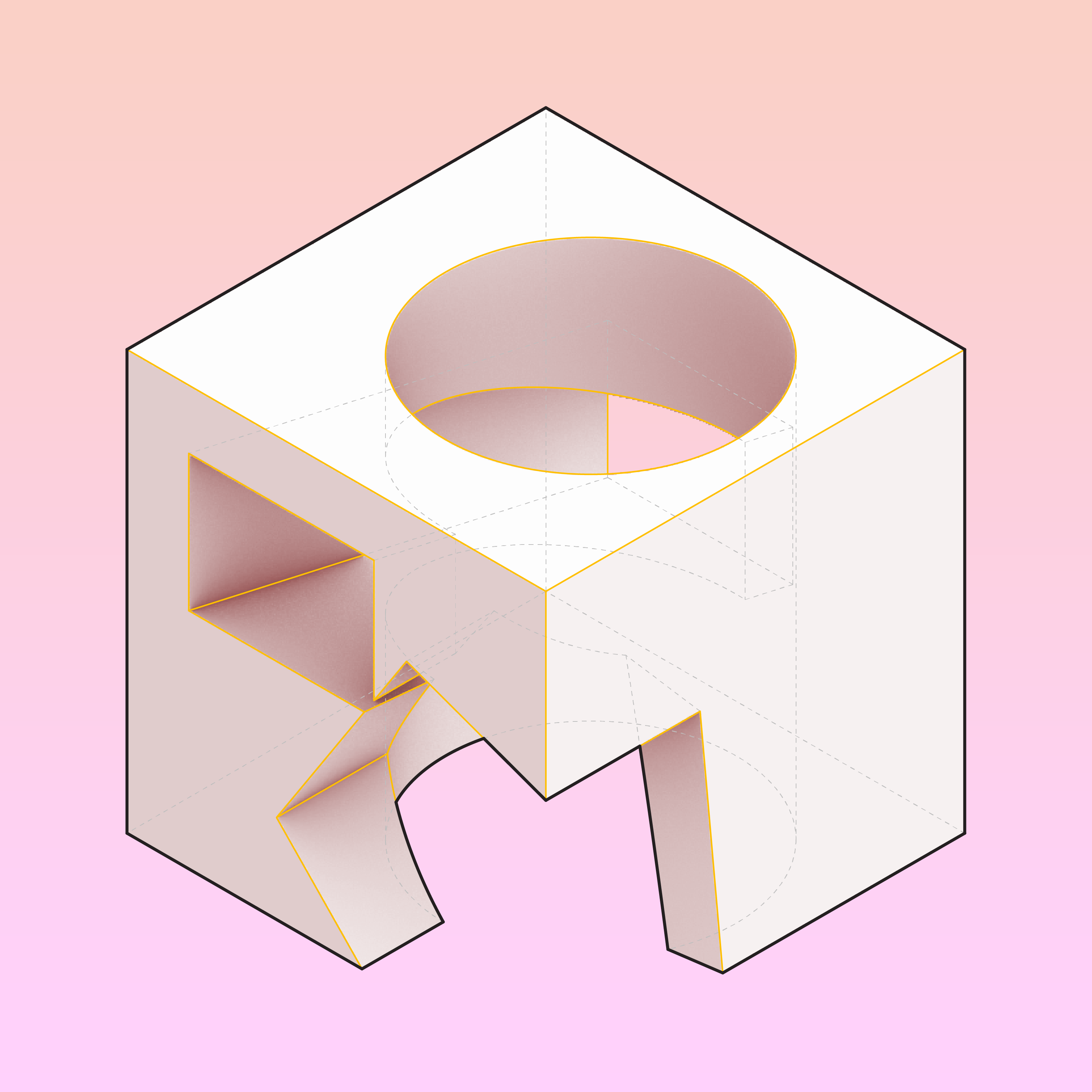

The Isometric view shows a room with cylindrical interior, three windows and one door. The outside of this room is a cube and inside is a cylinder. Two windows on the upper floor intersect with the cylindrical interior creating two rectangles.
A polygon opening connects the outer and inner surfaces of the room creating a doorway.
The elevation view shows the door opening on the left side of this room. The lines and shadows show the curves of this room. The dashed lines show the profile of the interior.

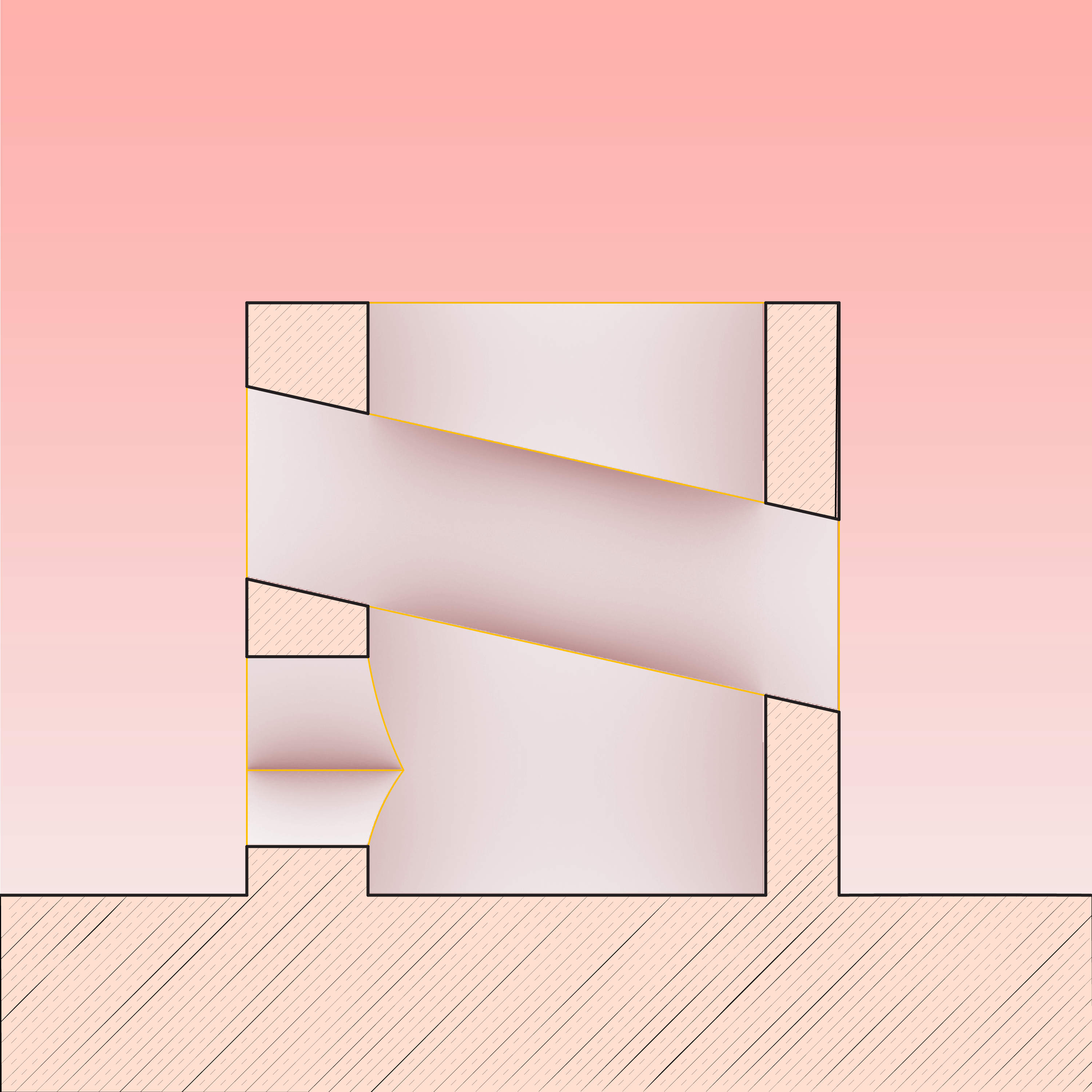

The section cuts through the
cylindrical
interior and rectangles windows show the thickness of walls.
