YANCONG E
In order to solve the problem of young people's stress and lack of time to do sports and to improve human interaction. The project aims to build a community complex that combines sports, entertainment and living. The building consists of three separate single apartments, a skateboard track around the apartments and a semi-subterranean shared kitchen. The whole building is lifted up and supported by stilts underneath, creating more space for people to move around. There is an original building on the site that is used as a store for the sale and rental of skateboard equipment for people to use.
Concept is inspired by an unfolding box, the track extends from the center in all directions to form a skatepark tracks where people can skateboarding on it. Some process models show the evolution of the building form.
In order to better integrate the apartments and the skatepark. so then three apartment units are located at the highest point of the building, which aims So then three apartment units are located at the highest point of the building, which aims to create a good view for people inside each unit. The slope can be used not only as a roof, but also as a track for the skatepark. In the study of skate parks, quarter pipe, half pipe, fun box, and arch slope are the main components, so in some parts of the roof, I extrude a part of the roof as a funbox, or in cutting one more time based on the original slope of the roof, and open a window or skylight on one side so that people inside the apartment can see the skateboarders. Using this method, there is a complete and continuous circulation from the roof of the apartment all the way to the shared kitchen at the bottom. In the isometric view, different colors represent different components in the building.
Plan of Each Floor

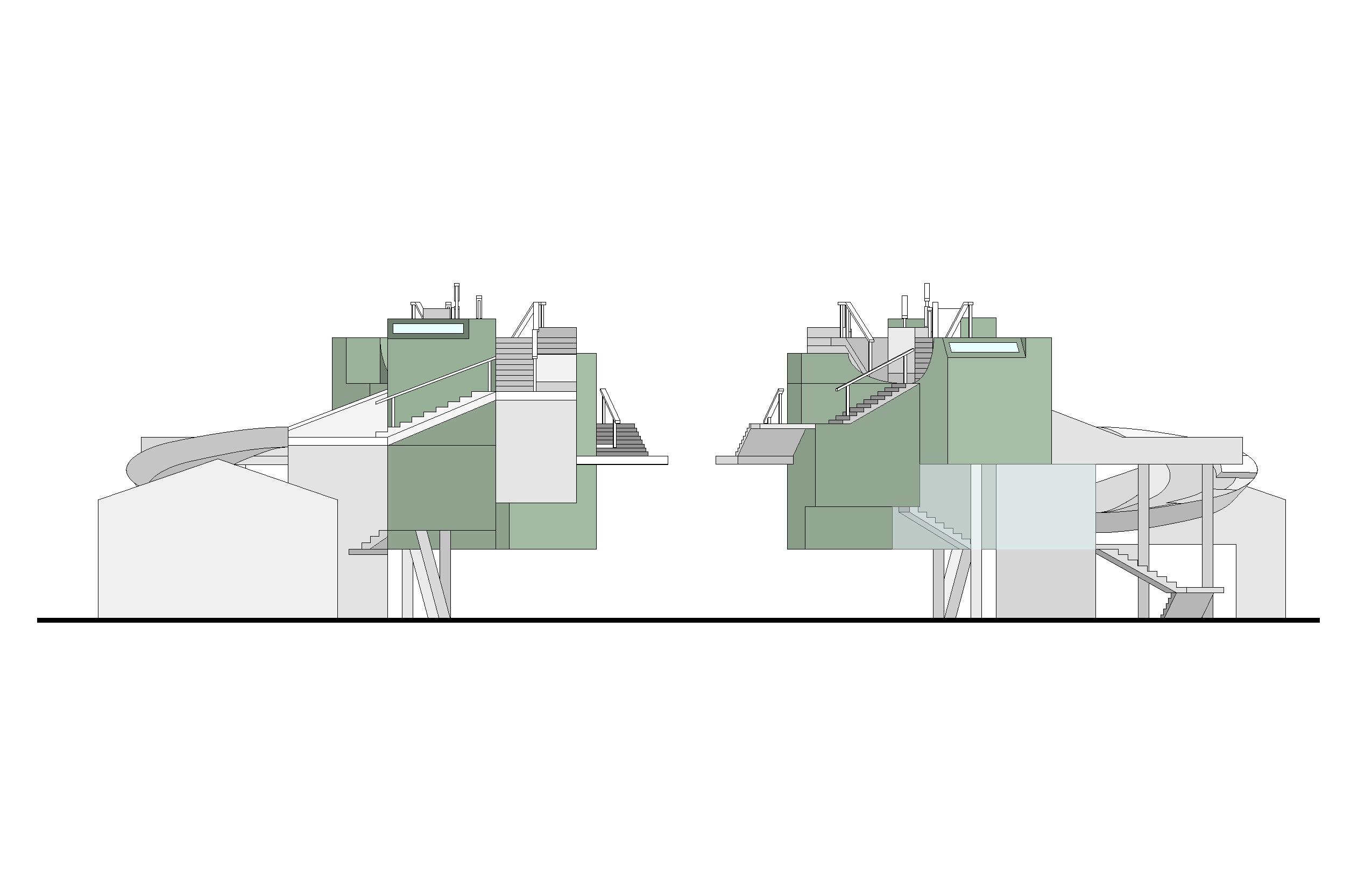

Front Elevation, Back Elevation, Left & Right Elevation

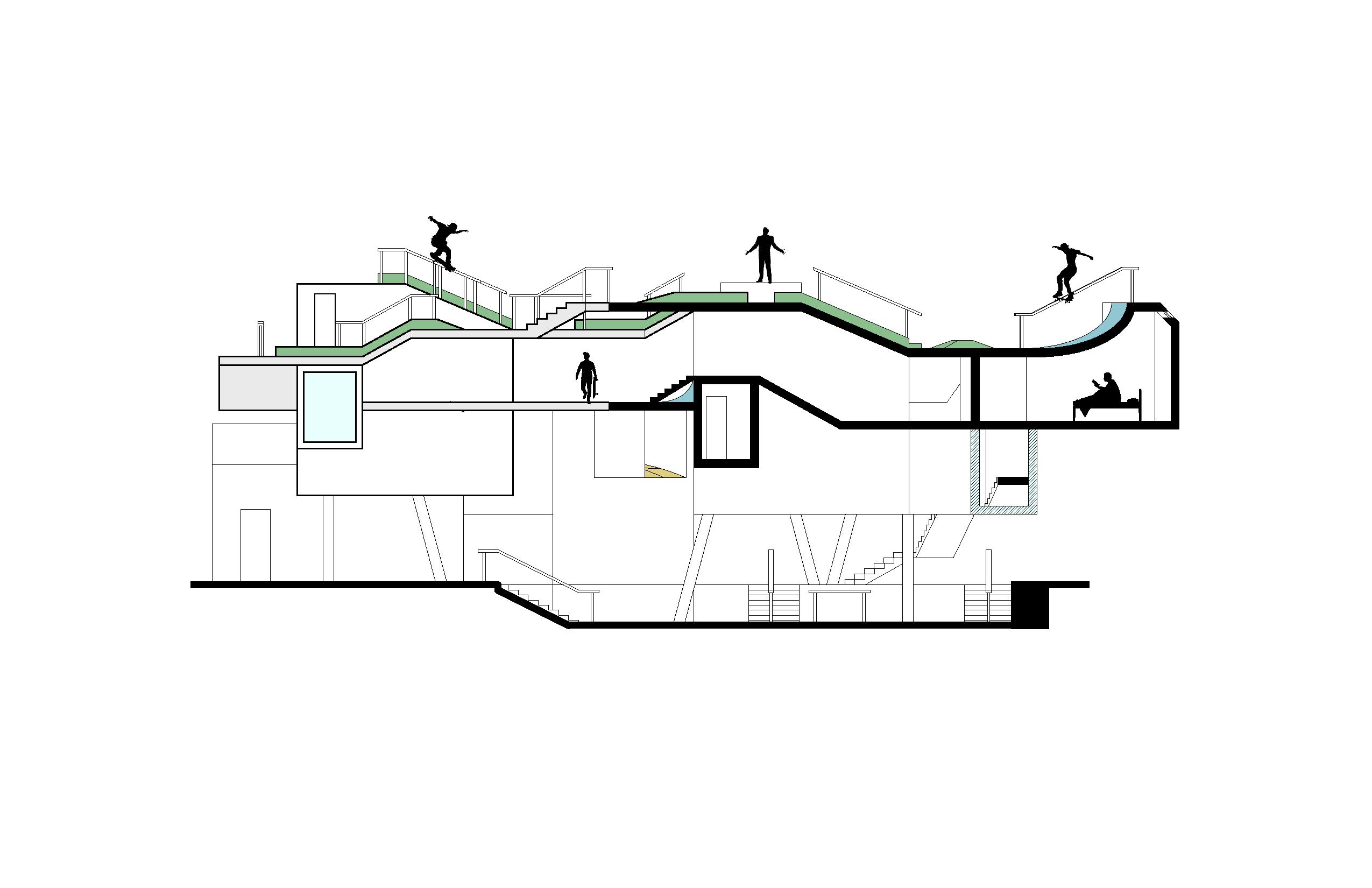

Sections

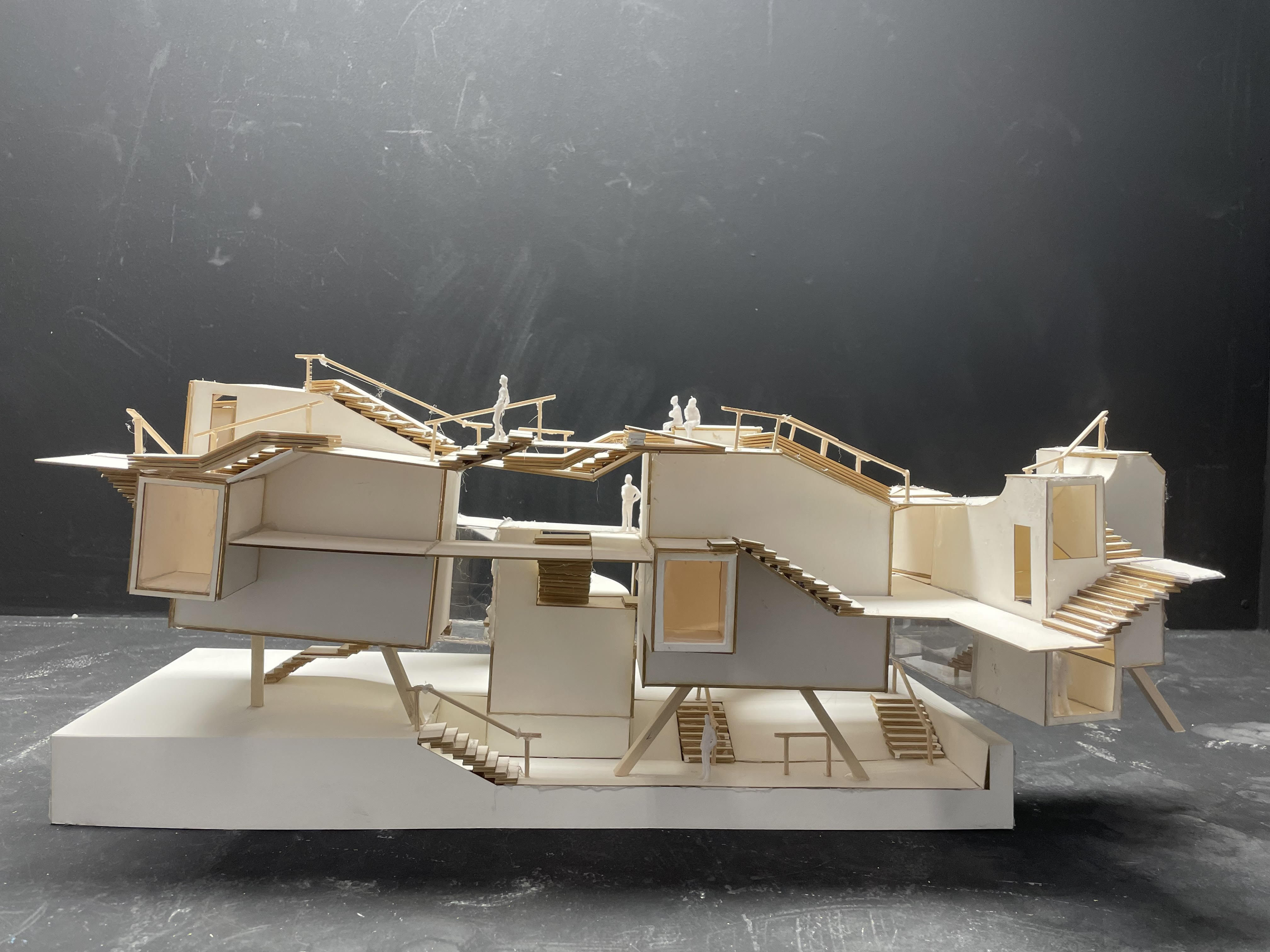

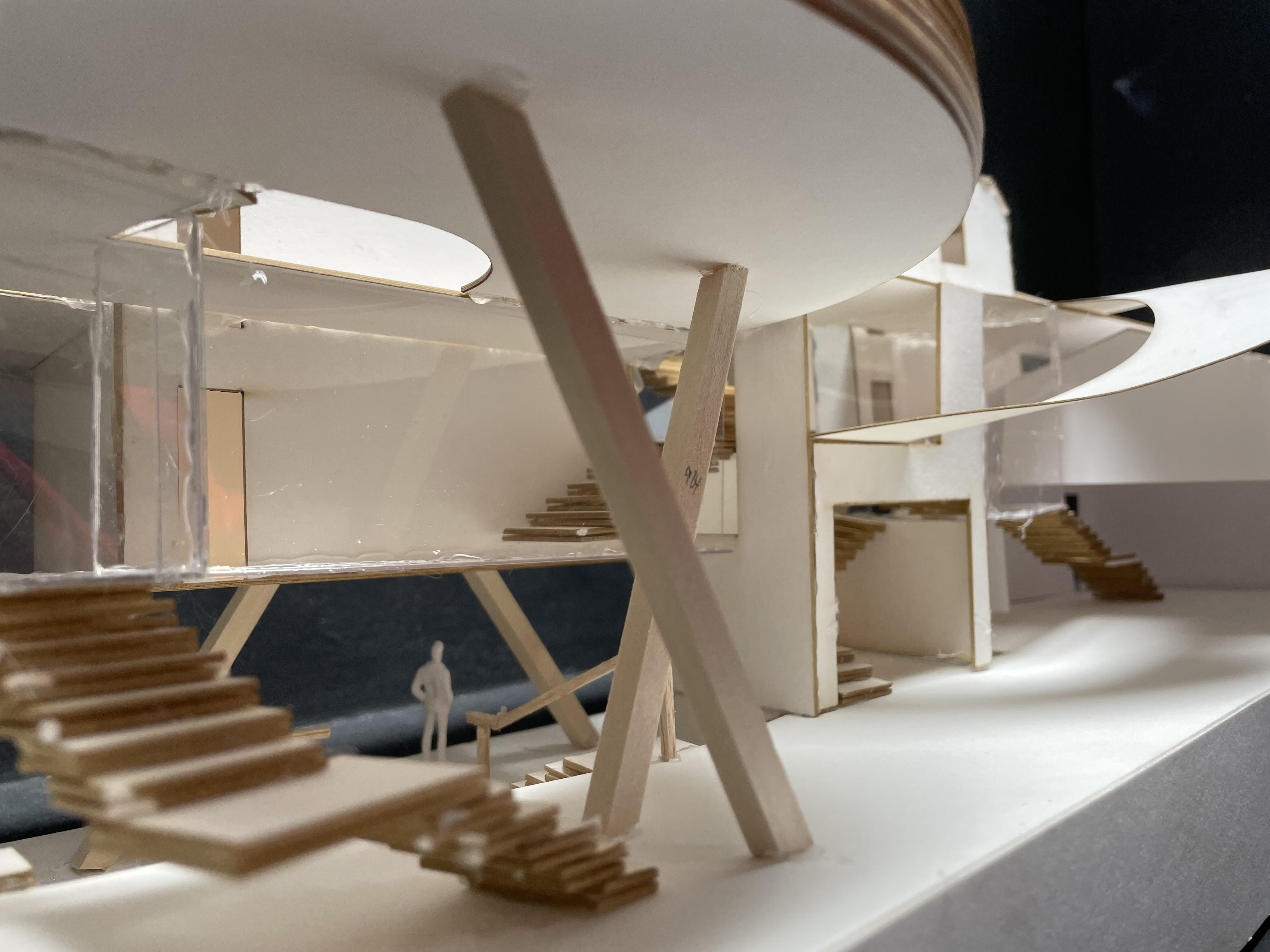

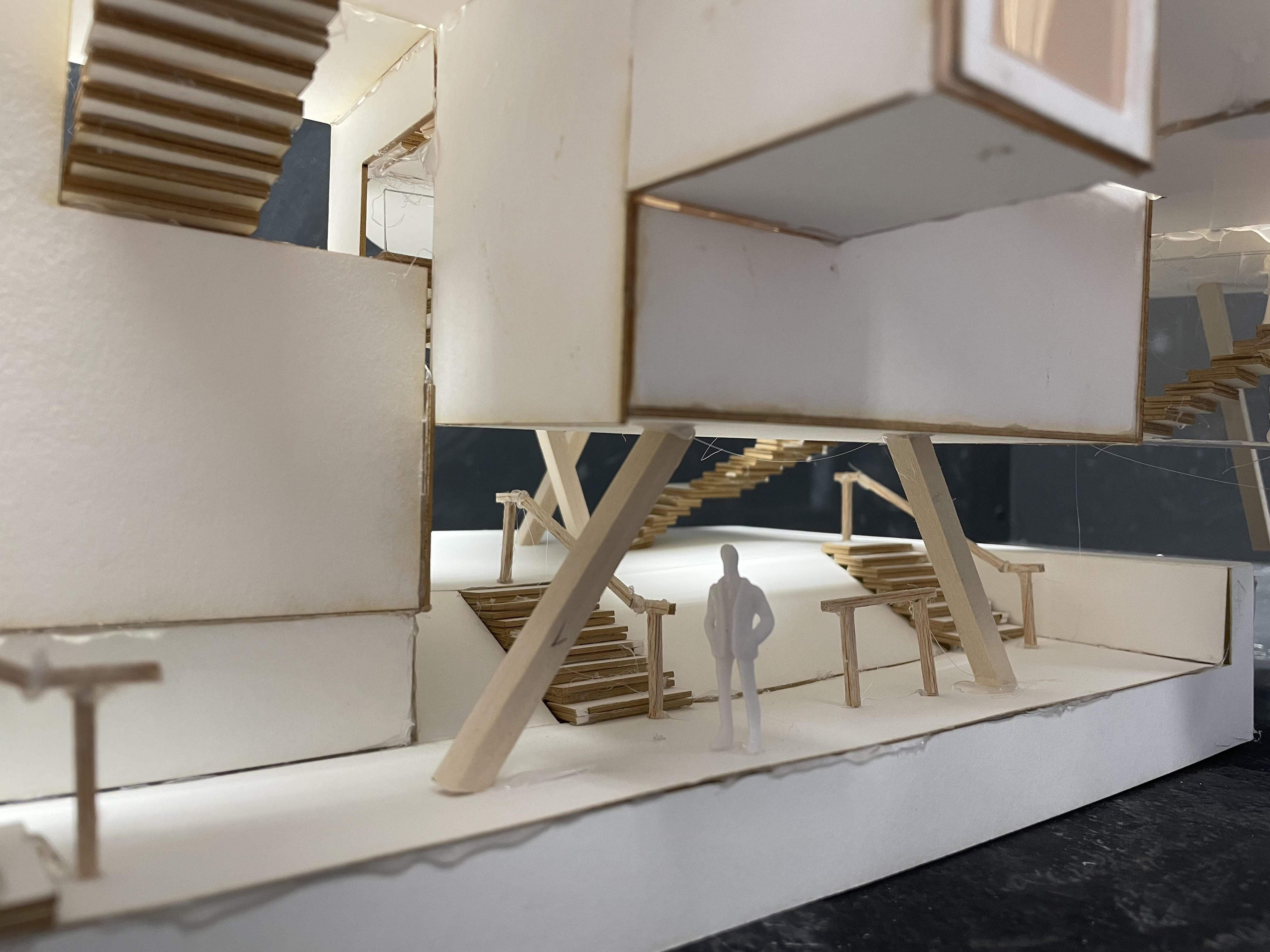

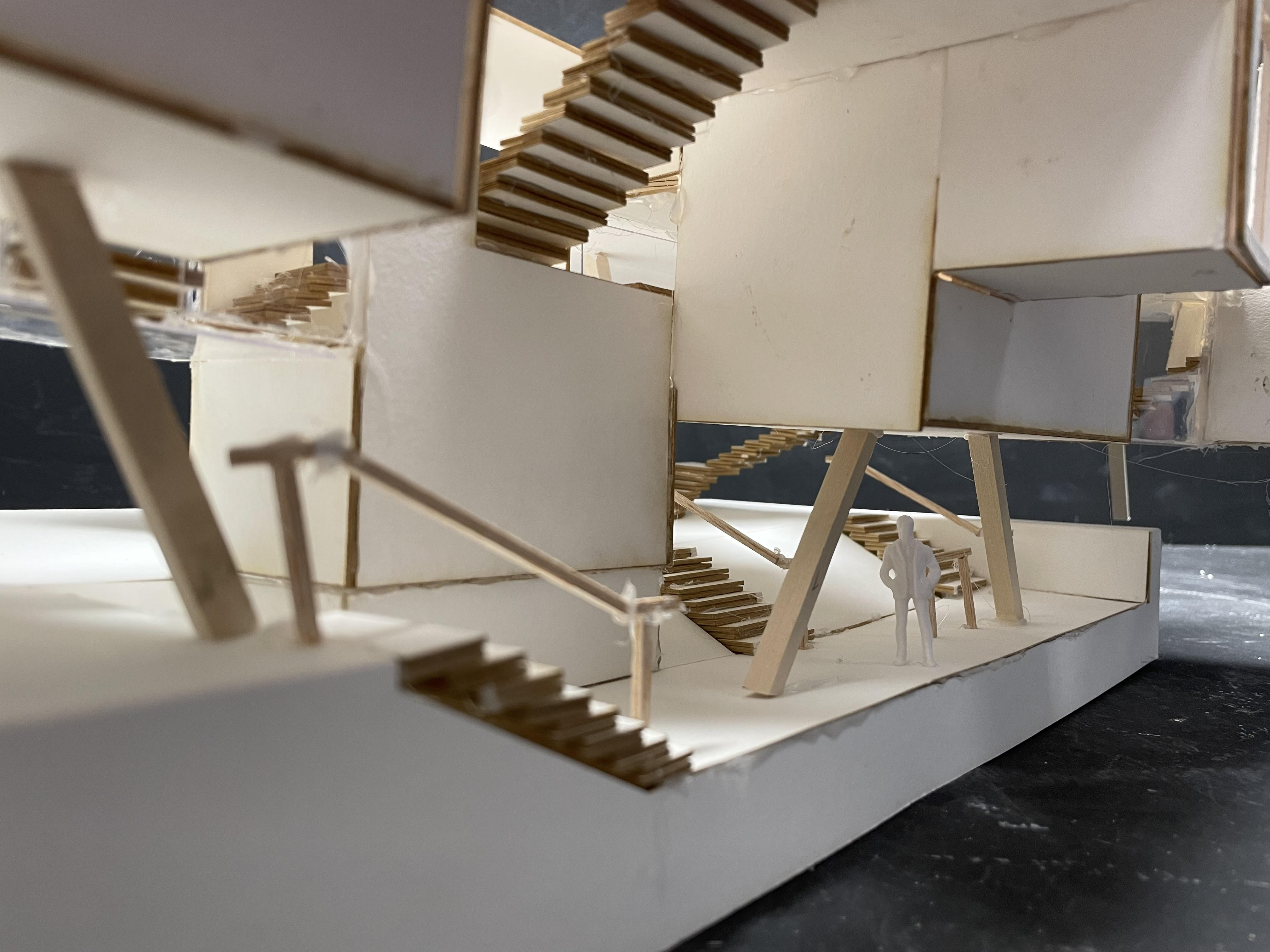

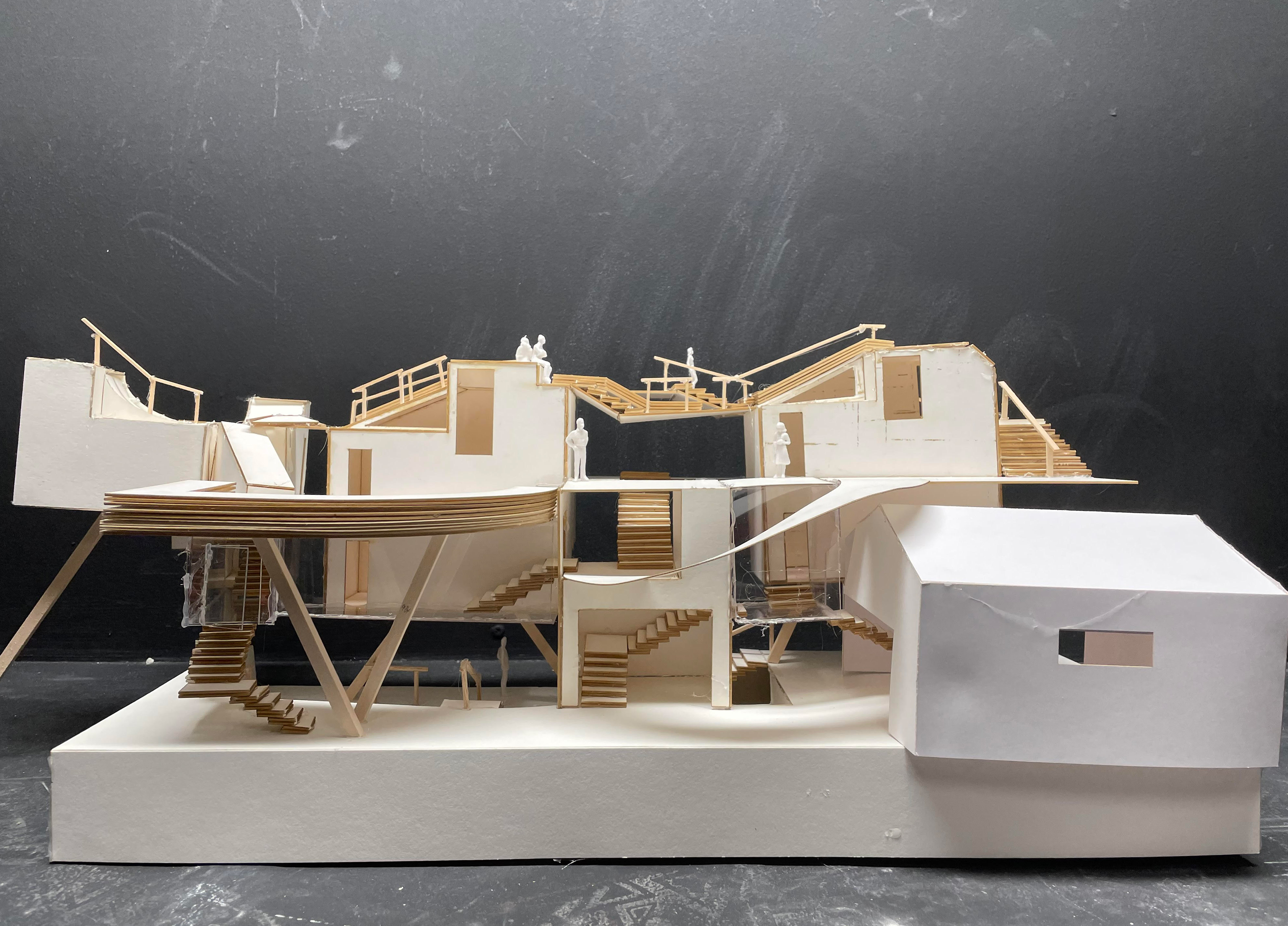

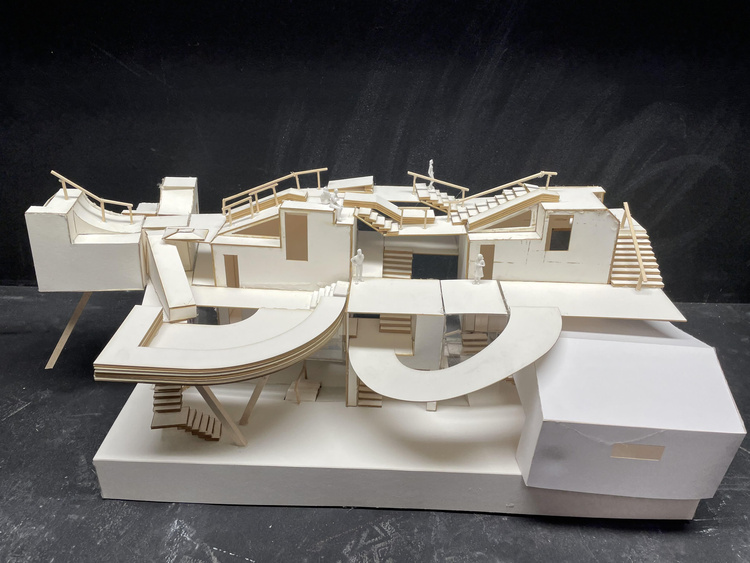

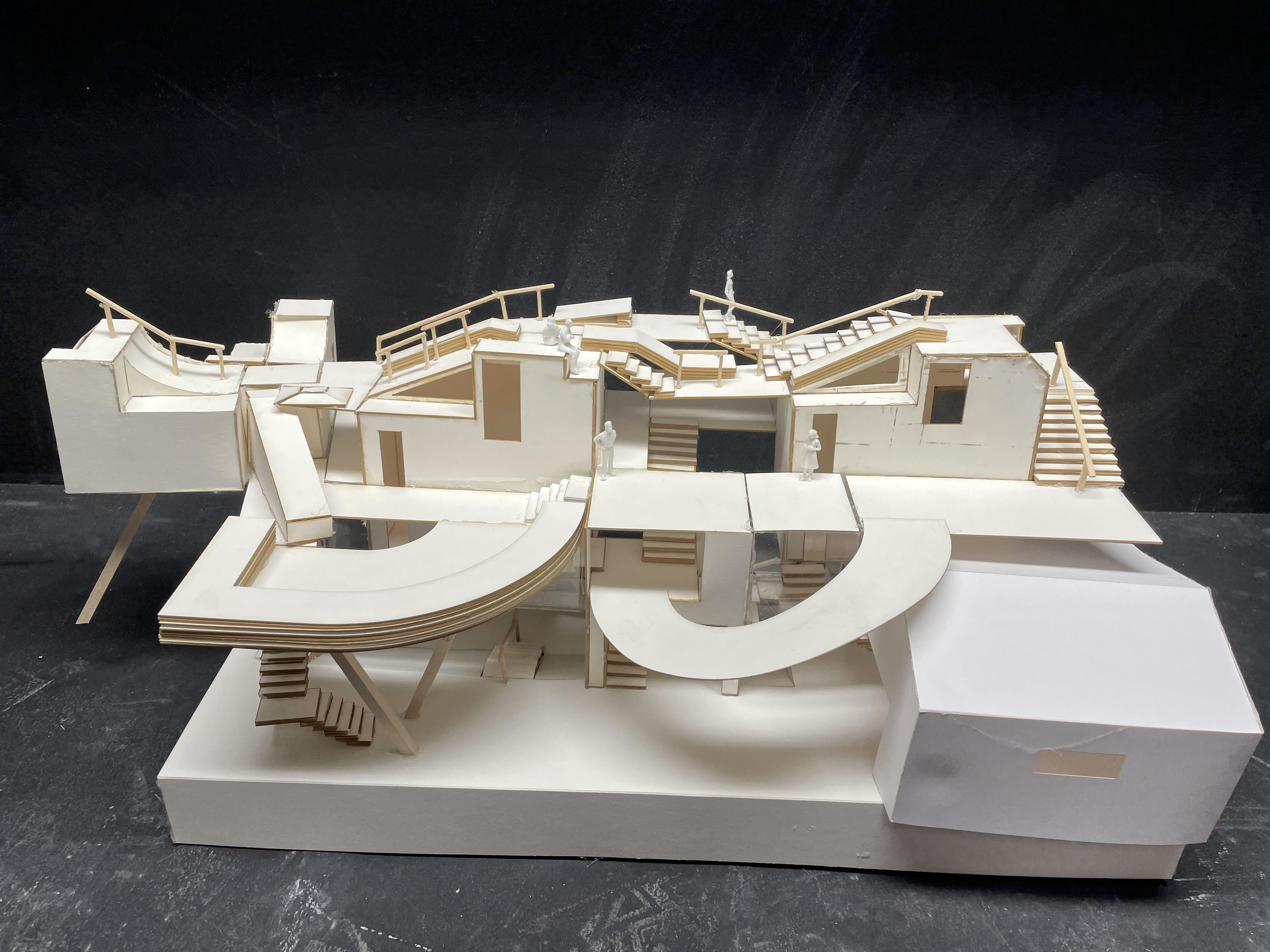

Pictures for Physical Models
