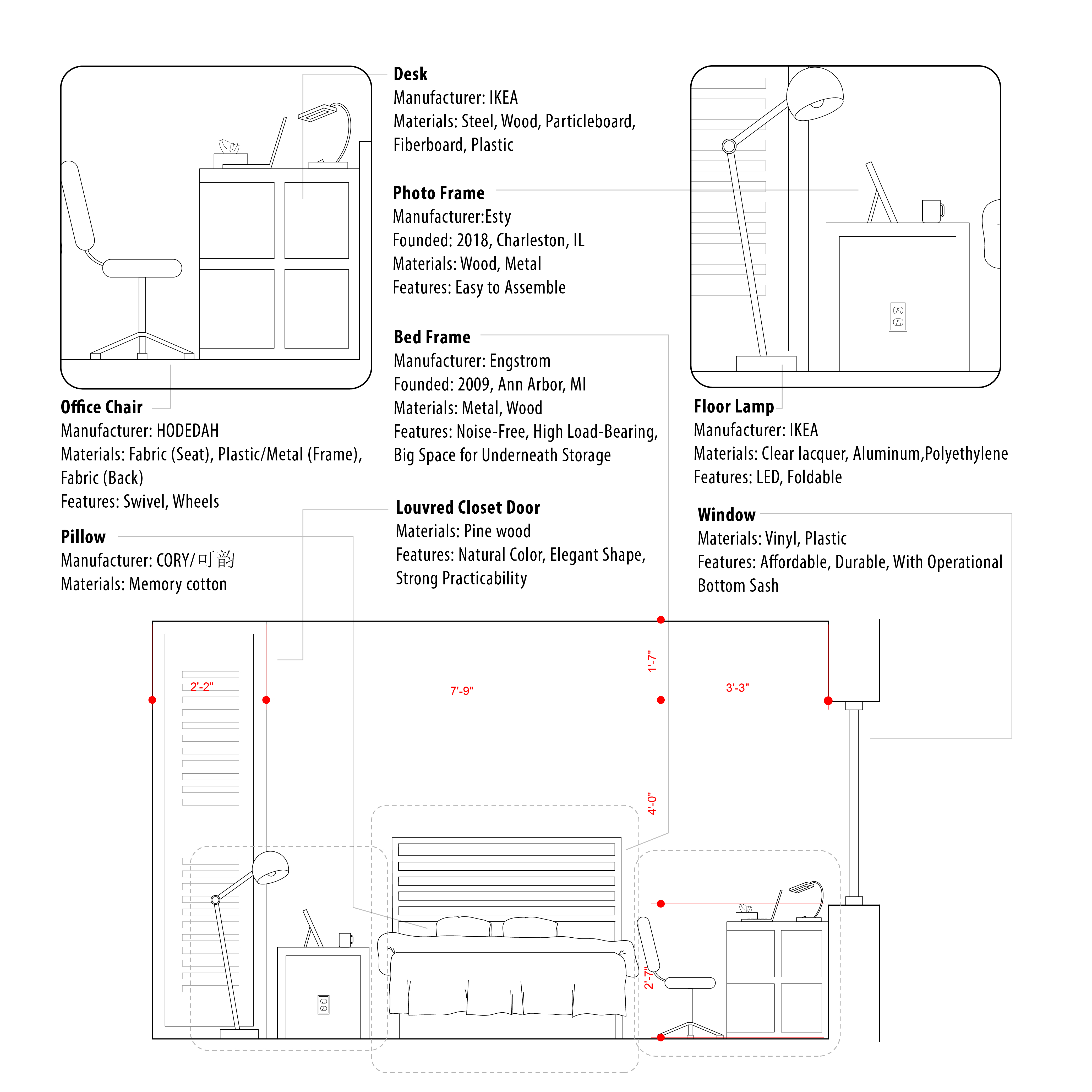

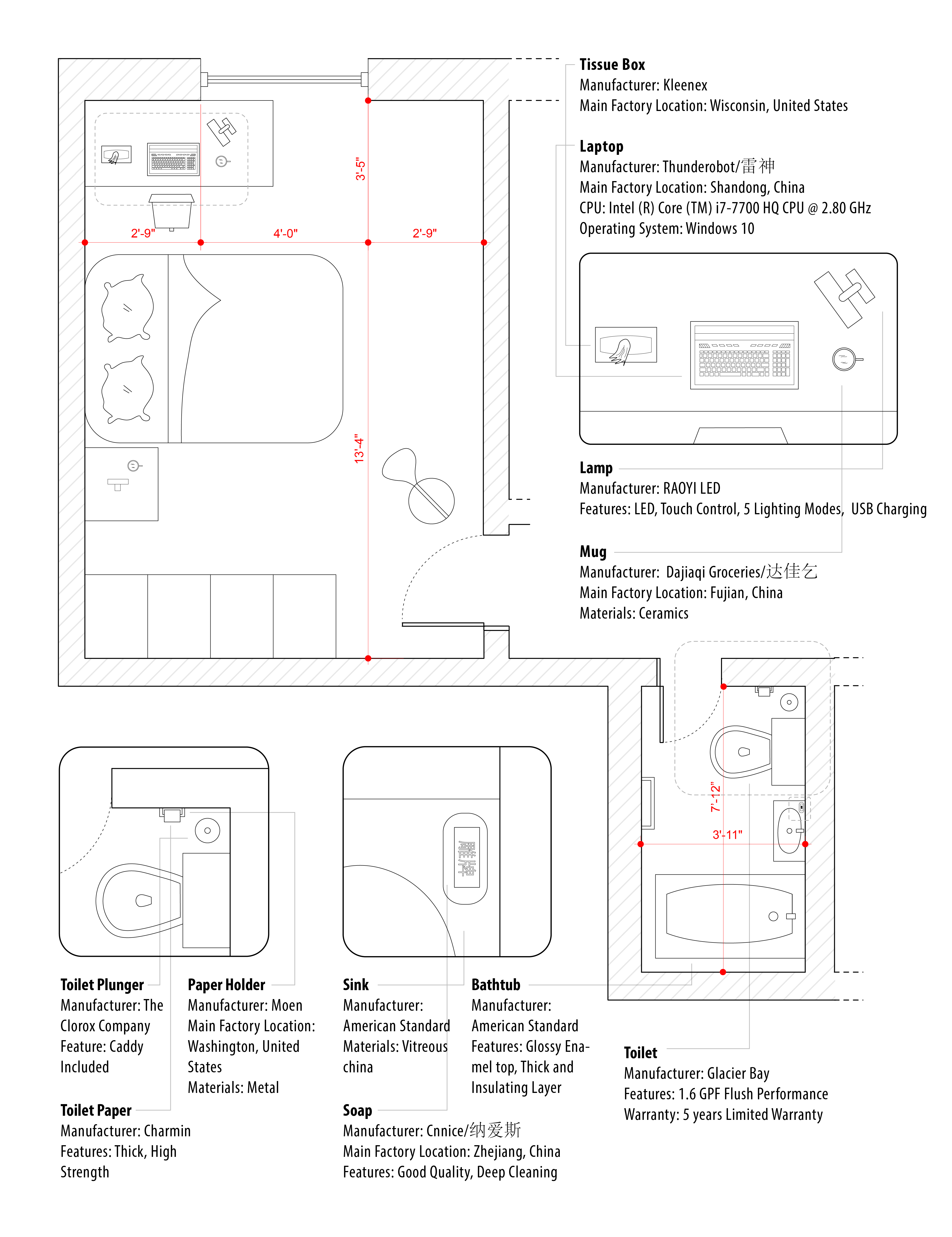

The image shows the bedroom and bathroom of my apartment. The main components of my bedroom include my desk (IKEA), bed (Engstrom), End table (IKEA), Closet, Chair (HODEAH), and floor lamp (IKEA). My bathroom consists of a toilet (Glacier), sink (American Standard), toilet plunger (The Colorox Company), Paper holder (Moen), Bathtub ( American Standard) and a soap (Cnnice).
My laptop (Thunderbot), lamp (RAOYILED), mug (Dajiaqi), and tissue box (Kleenex) is placed on the desk. There’s also a mug and a photo frame (Esty) on the top of my end table. My closet has two bifold louvered doors and they are made of pine wood.
Since most of the furniture in my apartment is from IKEA. I conducted a survey on IKEA's operation and management mode. Trying to find out the value chain of their business and how they accomplish their achievement from each stage of the value chain. As the world's largest furniture manufacturer and retailer, how IKEA provides its customers with good after-sales service, exquisite and eye-catching design, gorgeous visual experience is a direction worthy of in-depth thinking and research.

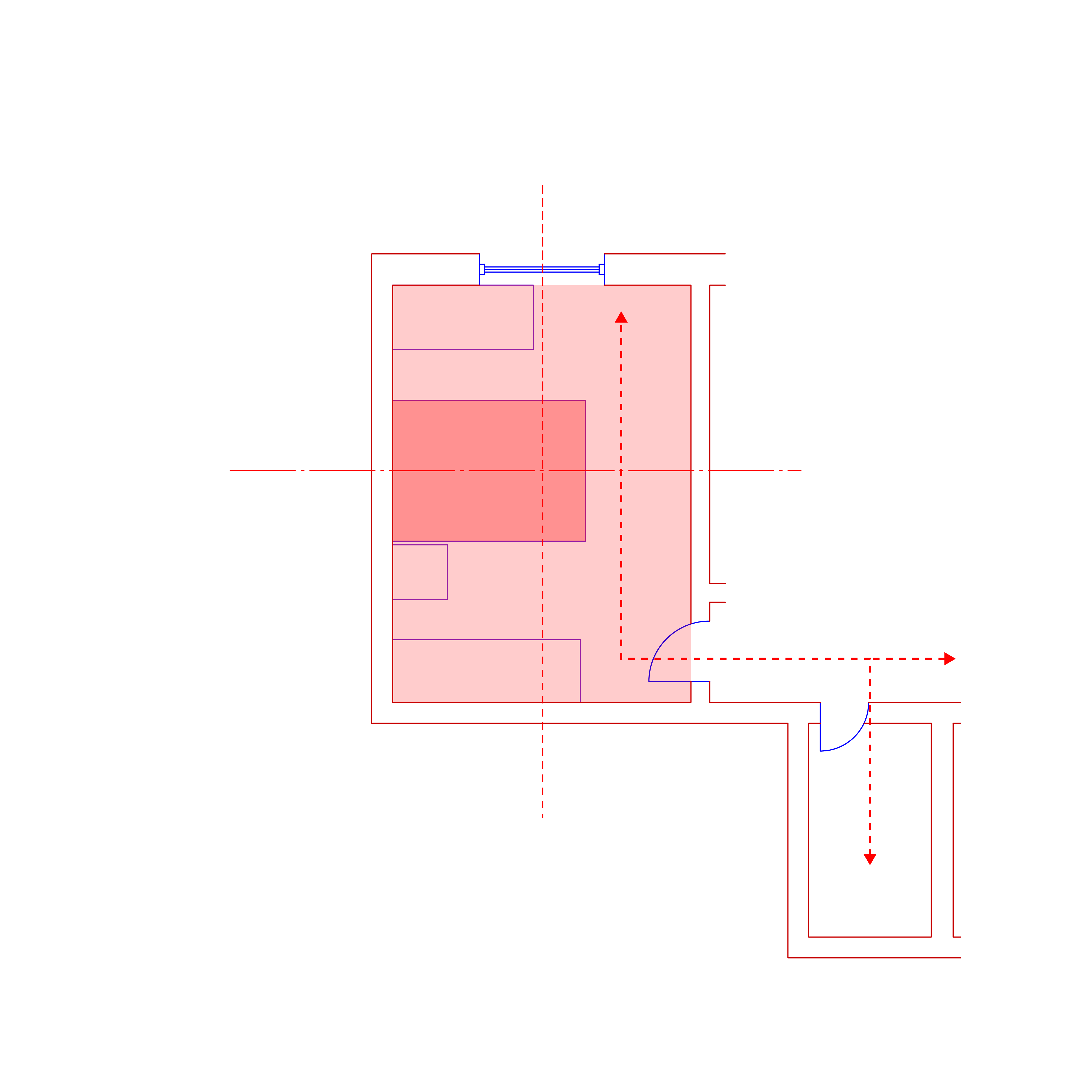

The organizational diagram of my bedroom consists five different components: room, bed, vertical deshed line, horizontal dashed line, and walking streamline. The horizontal dotted line is an axis of symmetry based on the bed, and the desks and wardrobes on both sides are regarded as two symmetrical objects; The vertical dotted line is a dividing line created by taking the midpoint of the window as the benchmark, which divides the room into two parts; The contour lines of bed and bedroom provide the spatial limits for the organizational diagram; The walking streamline is represented by dashed lines with arrows. These lines make the division of space more clear.
In the graphic composition, there are some morphological changes in a different alignment. The line with arrow and flower is formed by the horizontal dashed line; the dashed line with huge gaps comes from the outline of my bed; the vertical dashed line changes to densely arranged polylines; and the grid lines were created based on the outline of my bedroom.
According to the graphic composition, different objects have been extruded to three different heights: 0.5’, 0.6’, 0.75’. The grid lines have been separated into two parts and the bottom grid parts as well. They are rotated 90 degrees vertically to create a vertical "wall". Part of the dotted line representing the contour of the bed has been put down aim to create a three-dimensional bed. The walking streamline was separated and move to the right corner to make these objects more look like a whole community.
This top view shows changes in the cross-section of objects at different heights. The different cross-sections show the interconnection between various objects. The original lines are at the bottom to show the original shape of the diagram.
This view shows the cross section of the room changing from left to right, clearly showing the arrangement of objects. A series of horizontal and vertical cuboid slices enrich graphic elements by presenting different sections.
