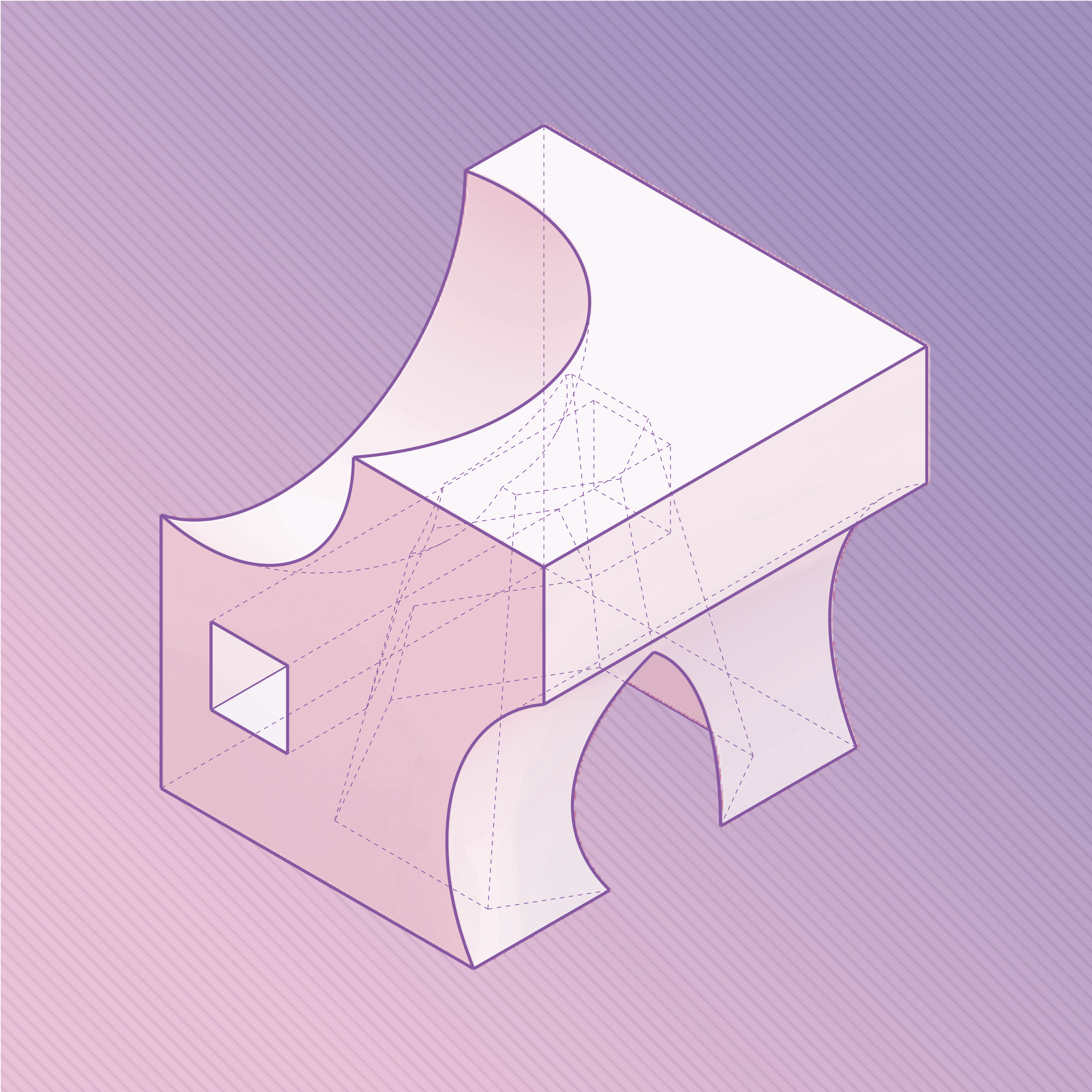

This isometric view shows a room with a hexagonal interior, three windows and one door. The outside of the room is a cube cut by some spheres and columns, and the inside is a hexagon. The place where the hexagon and the sphere are cut forms a curved window, which can provide light for the room. A cuboid passes through the hexagon and cube, so that the outside can provide ventilation without contact with the inside. A leaf shaped door is opened on the surface of the cylinder cut hexagon.

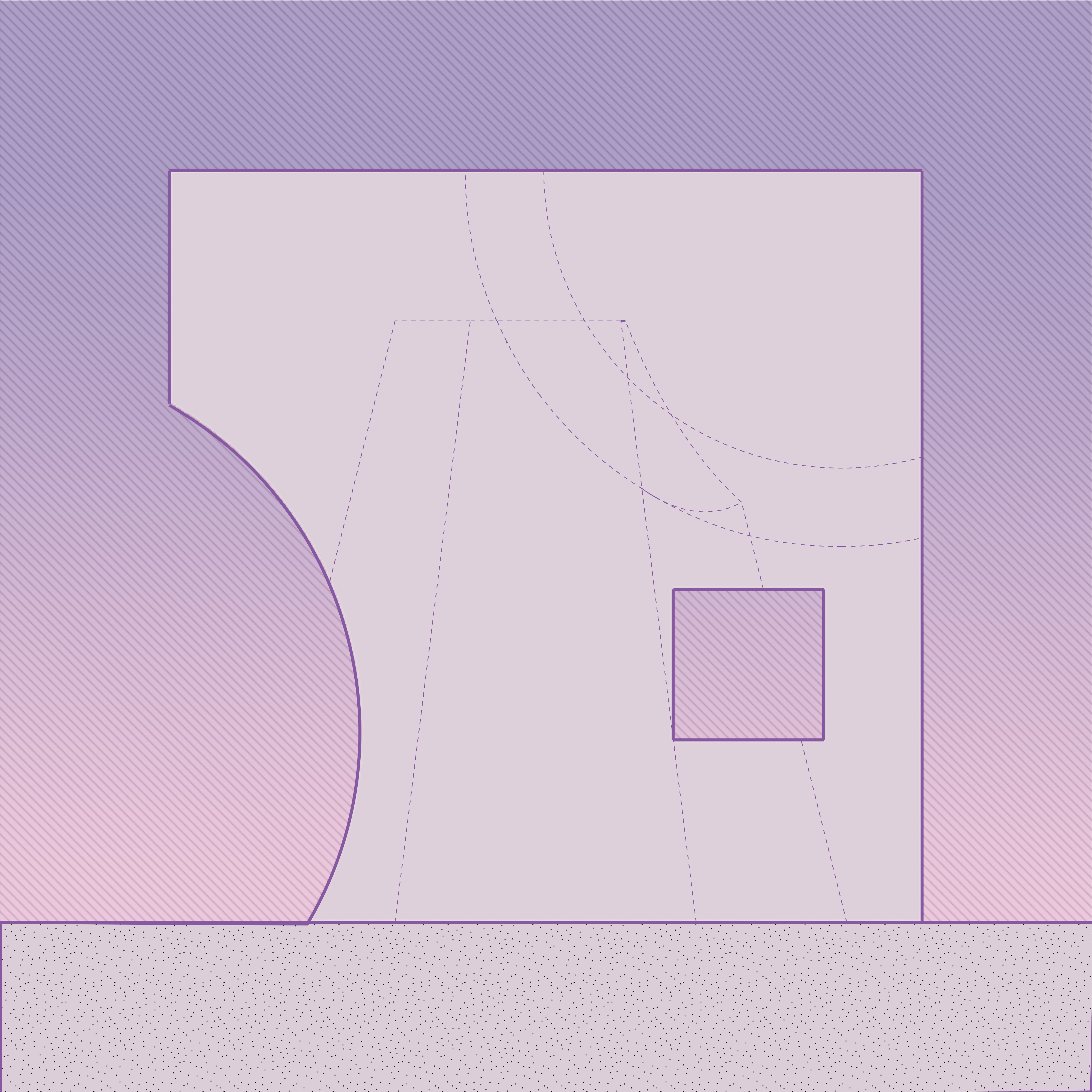

This elevation view shows the space formed by a window which is not connected with the interior and the outside of the room. The window is square, and the projection of the space outside the door in the elevation view is an arc. The dotted line shows the hexagon to be cut and part of the sphere on the other side.

This section is the image cut from the right. You can see the interior of the room in the middle, and a little farther away is the leaf shaped door. The upper point is the face of the cuboid cutting the cube room. In the upper right corner, you can see the mark left by the partial cutting of the sphere.
