SOPHIE PACELKO

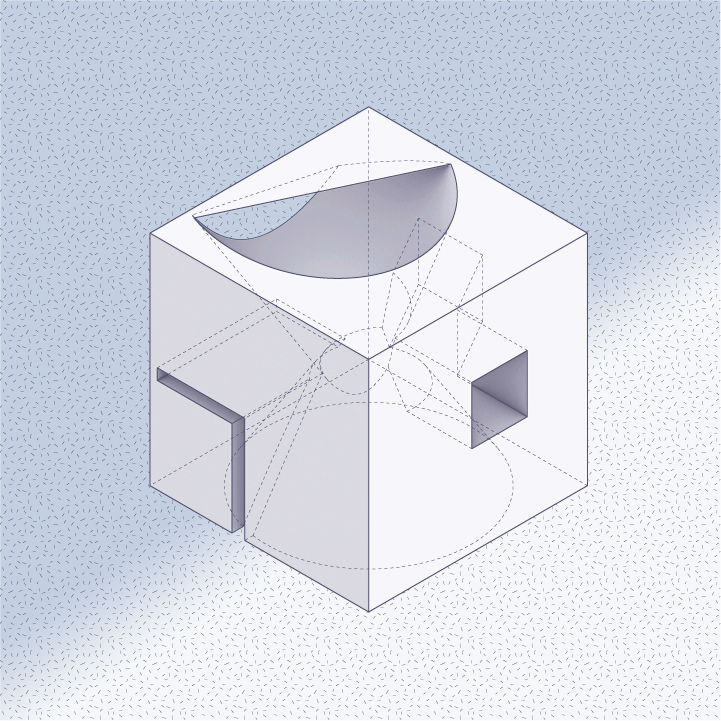

ISO | Focused on the transfer of energy through vortexes, the center of the cube was cut away by two cones; one positioned upright and the other inverted and angled towards the northwest. The ground entrance to the enclosure is a slim-angled rectangle, leading into the lower cone while the angled portion extends left. The mid-layer cube transcends both cones, from center to right, bringing cyclical flow into the horizontal plane as well as the vertical.
Elevation | This plane is positioned from the back left side of the ISO. The upper portion shows the opening from the inverted cone while the dashed, parallel lines running through the cones show the passages. The simple look of the passages managing the chaotic rhythm of vortexes.

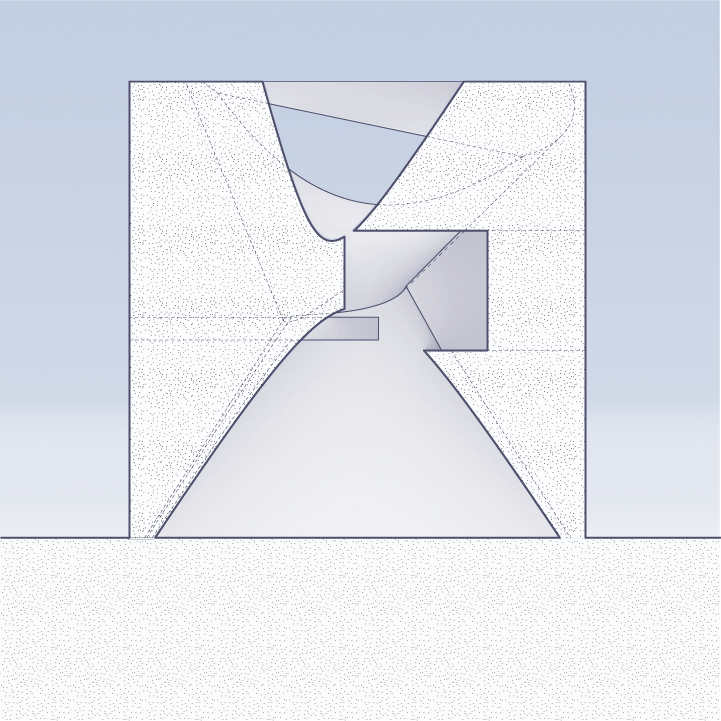

Section Cut | Clipped from the right side, this cut plane shows the channels of flow. In the foreground, a large opening is seen through the center that extends out through the top, while the background rectangular shapes sit in a middle and rear plane. I chose this plane as the pressure of movement can be visualized by the changing sizes in openings.
