SAMPLE PROJECT

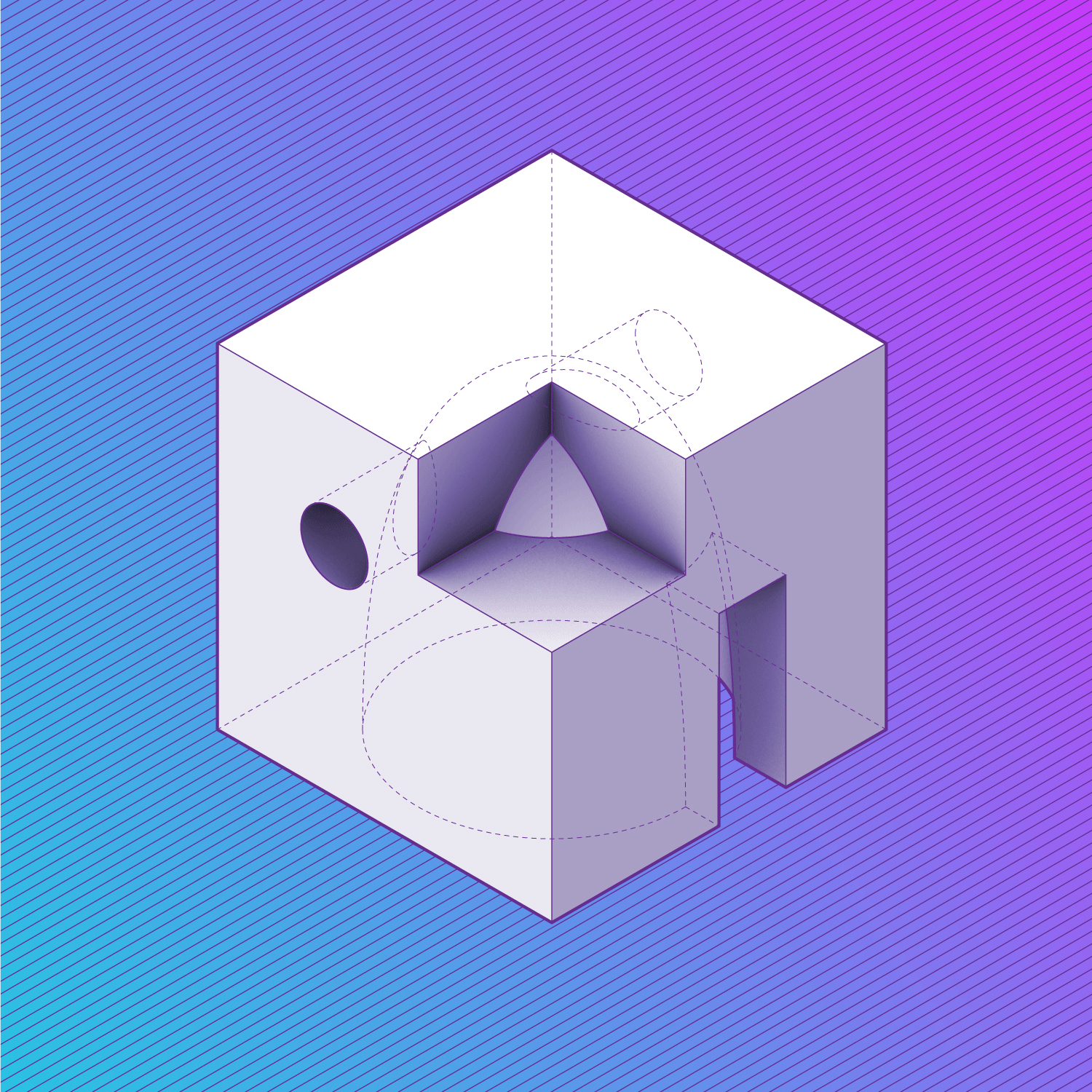

This isometric view shows a room with a rounded interior, three windows, and a door. The outside of the room is a cube and the inside is a paraboloid. The window on the upper corner is a rectangular prism that intersects the interior creating a rounded triangular opening. Also, intersecting the interior volume in two locations is a cylindrical opening oriented perpendicular to the cubes outer face. A rectangular opening connects the outer and inner surfaces of the room creating a doorway.

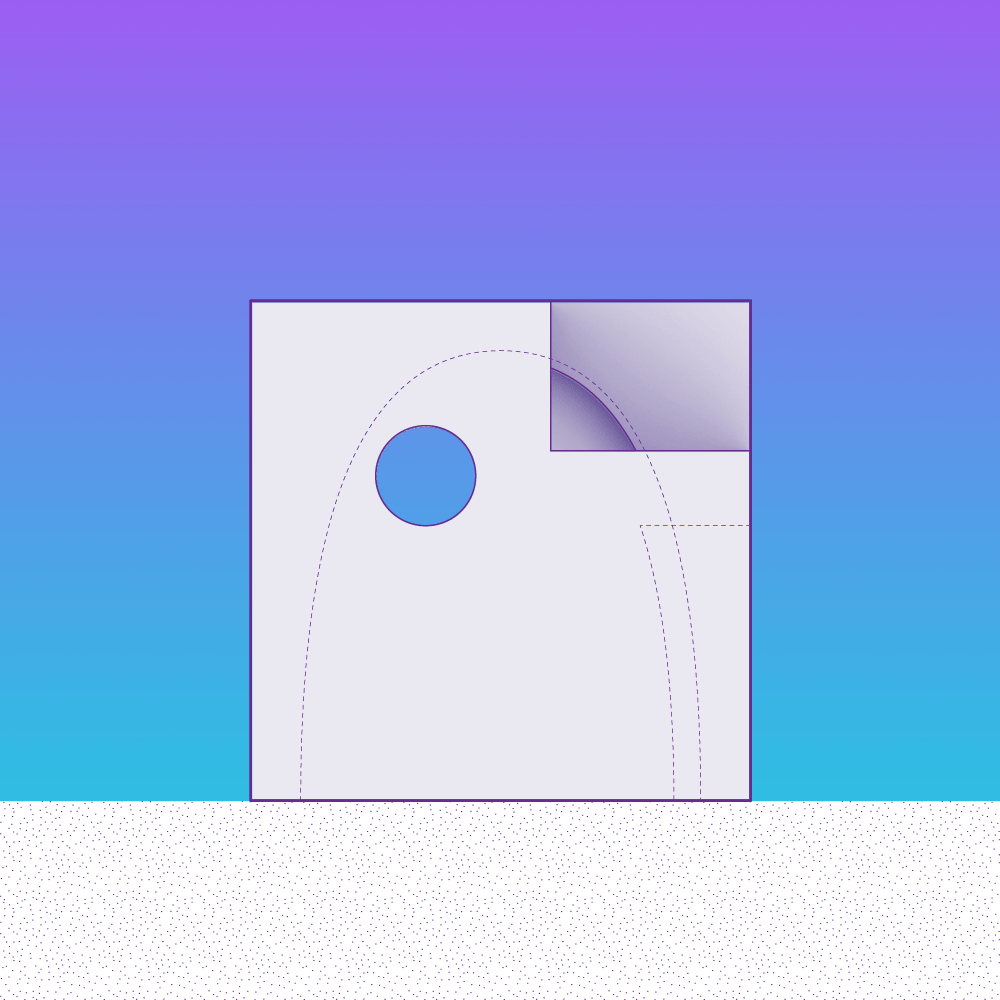

This elevation view shows two of the room's windows, one in the shape of a circle and the other a rectangle. Both are created by three-dimensional voids that intersect the outer and inner surfaces of the room exposing the thickness of the walls. The dashed lines show the profile of the interior and door beyond.
This section cuts through the paraboloid-shaped interior and the cylindrical window showing the thickness of the room’s walls. Beyond is the rectangular door and window.
